Design and Analysis of Flows in Energy Systems

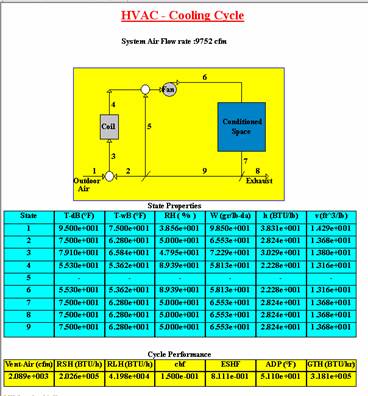

The above schematic can be divided in to two parts; a model space and a description space. Graphical user interface is provided with in the model space where it will respond to all mouse clicks in order to edit/append/modify different system components such as Room Design, Cooling coil process, Out-door design, Fan and duct designs. The cooling coil process includes the following cases.
  • Cooling and dehumidification
  • Sensible Cooling
  • Evaporative Cooling
  • Cooling and humidification

The description space consists of table for all state properties and a table that summarizes the cycle performance data.
